Tech Specs

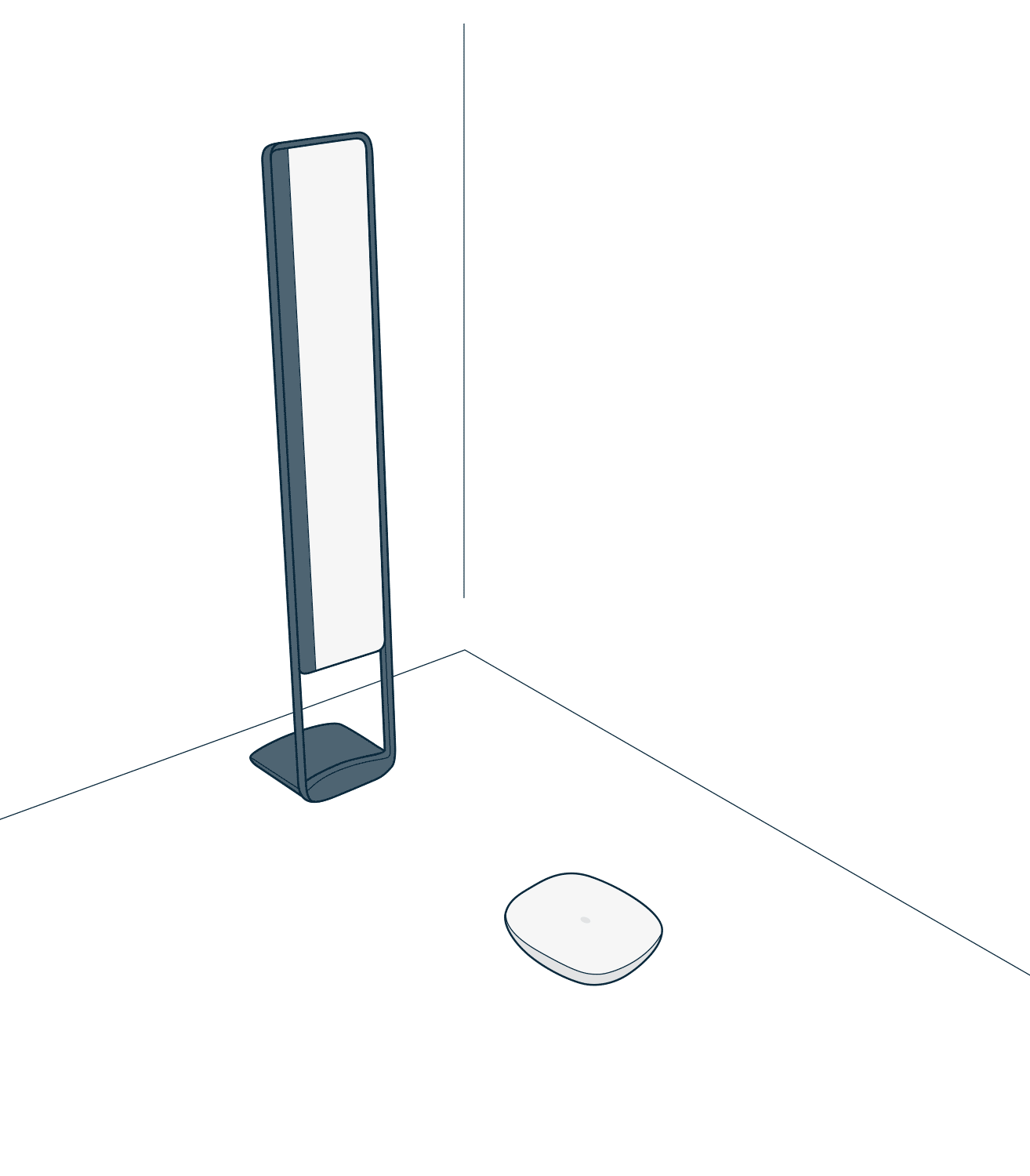

Space Requirements
Space: 24 in (60 cm) between the mirror and the scale
Radius: 18 in (46 cm) of clear floor around the scale during scan
Humidity: Environment free from humidity (no fogged mirrors)
Lighting: Ability to dim lights and/or cover windows
Floor: Hard floor (wood, tile, etc.) or short-pile carpet
WiFi: Access to reliable home WiFi network
User Requirements
Maximum weight: 330 lbs (150 kg)
Maximum height: 6 ft 6 in (198 cm)

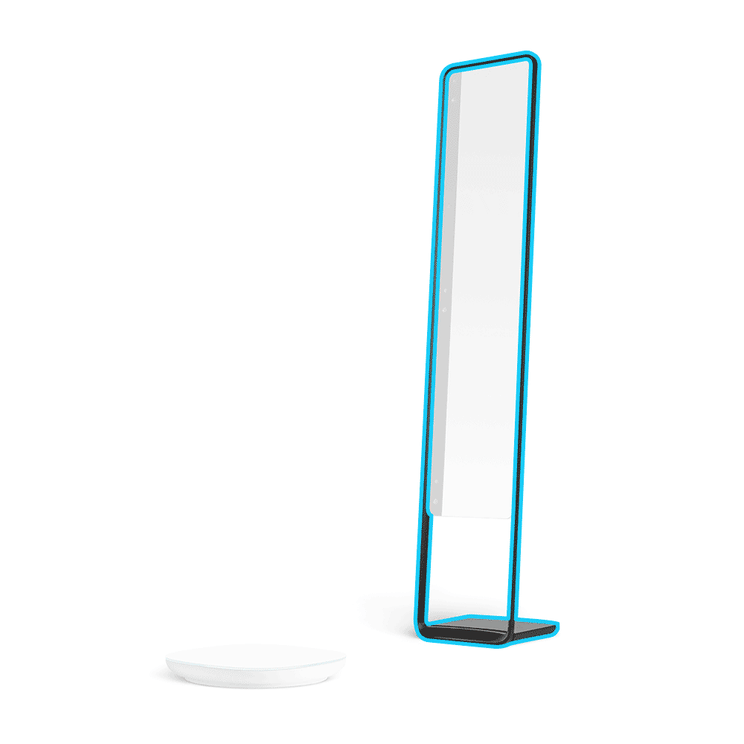

Frame
Matte black powder-coated extruded aluminum
Height: 62.5 inches (158.8 cm)
Width: 12.0 inches (30.5 cm)
Depth: 12.0 inches (30.5 cm)

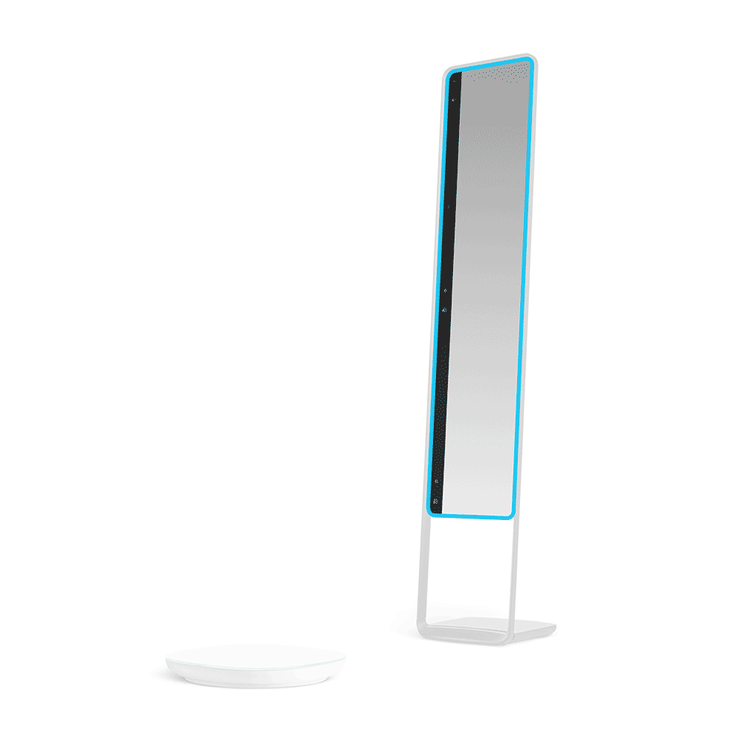

Mirror
Premium, low-distortion glass with black strip
Height: 49.2 inches (125 cm)
Width: 10.8 inches (27.4 cm)

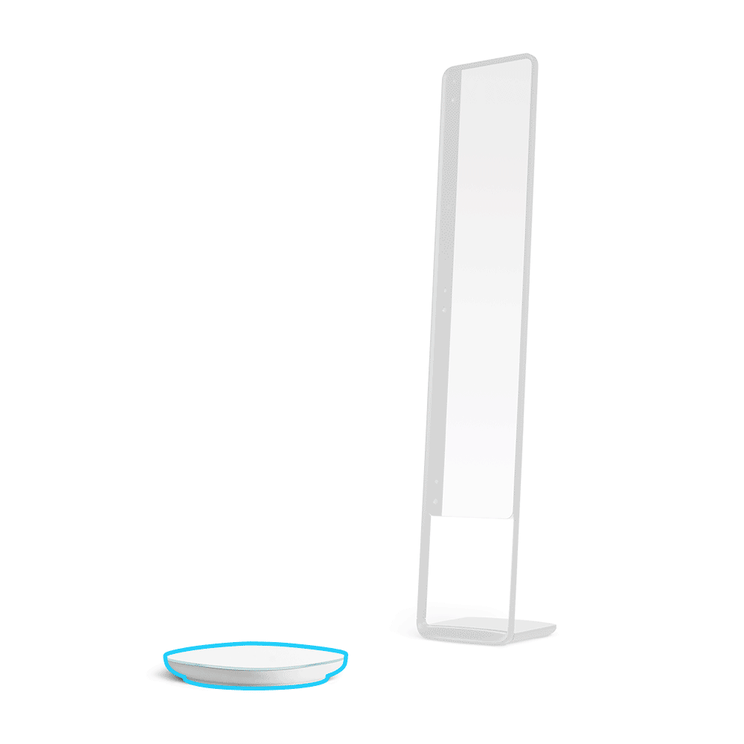

Scale
Matte white polycarbonate with glass top
Height: 2.5 inches (5.2 cm)
Width: 14.6 inches (37 cm)
Depth: 14.6 inches (37 cm)
Hardware
Built-in class 1 laser pointer to align scale before scanning
Full-color LED ring to communicate instructions and feedback during scan
20-lb weighted iron base to prevent mirror from tipping
Connectivity
Wi-Fi: 802.11 a/b/g/n 2.4/5 GHz
Bluetooth: Bluetooth 4.0 & Bluetooth BLE
Supported OS: iOS 11.0 and up, Android 8.0 and up
Power
Mirror: Powered by detachable, grounded 125V AC cable (4 ft/122 cm)
Scale: Powered by 2200mAh lithium ion battery, rechargeable via USB-C cable
Battery life: A fully-charged scale will last for approximately 100 scans
Processing
CPU: Intel x86 processor
RAM: 4GB DDR4
Storage: 64GB M.2 SSD
Sensors
3D Depth: Intel® RealSense™ D410 depth sensor
Motion detection: Accelerometers in mirror and scale
Weight detection: Works on carpet and hard surfaces up to 330 lbs.
Devices
Apple smartphones running iOS 11.0 or 12.0
Android smartphones running Android 8.0 or 8.1
*Tablets and web-viewing are not officially supported
